Features:

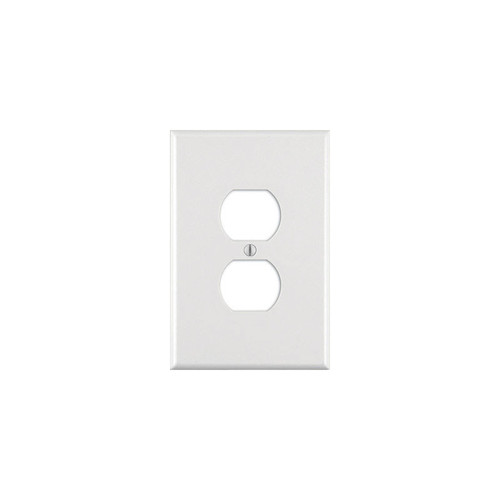

- Wallplate included
- Self-test
- SmartlockPro® Slim
- Amperage: 15 Amp
- Voltage: 125 Volt
- NEMA: 5-15R
- Terminal Accom.: 14-10 AWG
- Pole: 2
- Trip Level: Class A, 5mA plus or minus 1mA
- Wire: 3
- Termination: Back and Side
- AC Horsepower Ratings At Rated Voltage: 1 HP
- Dielectric Voltage: Withstands 1250V per UL943
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Flammability: Rated V-2 per UL94
- Operating Temperature: -35C to +66C
- Face Material: Thermoplastic
- Body Material: Polycarbonate
- Line Contacts: Brass Double-Wipe .031 Thick
- Terminal Screws: Plated Steel
- Grounding Screw: Plated Steel
- Yoke: Zinc-Plated Steel
- Clamps: Brass
